Specifikation
Supplier | ALL IN ONE Battery Technology Co Ltd. |

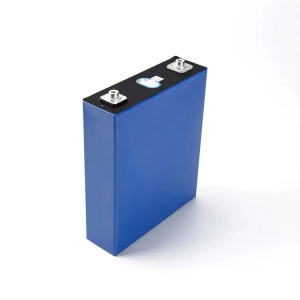

Model | CATL LF228 230Ah LiFePO4 3.2V Battery cell |
Virkelig kapacitet | Tested over 230Ah |
Nominel spænding | 3.2v |
Maks. Afladningsstrøm | 1C/ 230A |
Max ladespænding | 3.65V |
AC-impedansmodstand | ≤0,5mΩ |
Opladningstemperatur | 0-60℃ |
Udladningstemperatur | -30-60 ℃ |
Cykelliv | 6000 times SOC 80% |
Vægt | 4,2 kg |

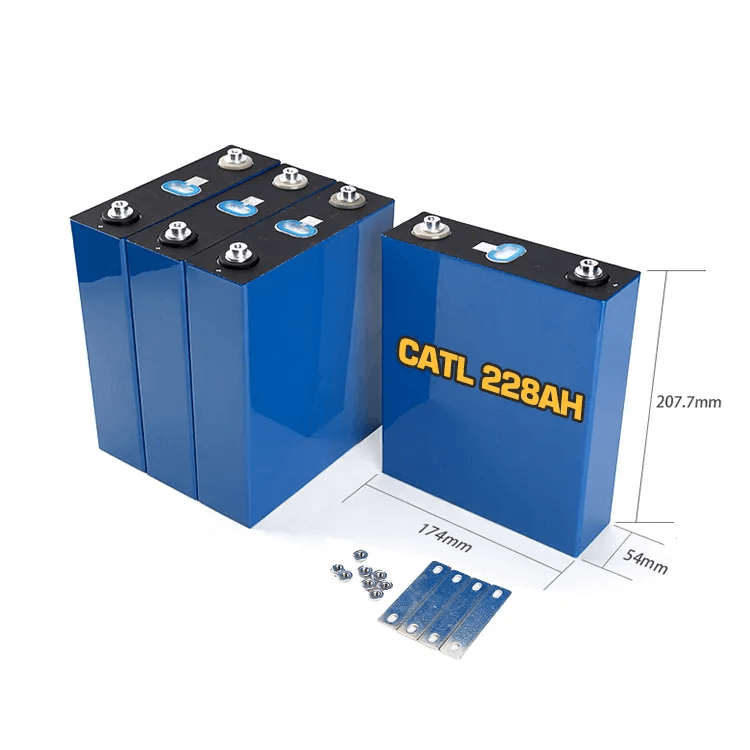

Dimensioner (L * B * H) | 174*54*208mm |
Applikationer | Solar Energy Storage Systems,automotive,Home storage and organization,New Energy Passenger Car,New Energy Bus,New Energy Professional Car,New Energy Construction,New Energy Ship,Telecom ESS,Grid ESS,Energy Storage on Power Generation,Energy Storage on Power Consumption,off-grid and island/isolate systems,UPS backup power |
1. Høj kapacitet og stabil udladningsspænding
2. Længere arbejdstid med høj ydeevne
3. Let vægt med lille størrelse
4. Fremragende afladningsegenskaber og lille indre modstand
5. Ingen hukommelseseffekt, god afladningsevne og høj belastning og modstå høj temperatur
6. Forurening fri for miljøbeskyttelse
7. 100% autentisk originalt, opladeligt Li-ion-batteri
8. Bulid i anti-eksplosion beskyttelse og kredsløbsbeskyttelse
Bemærk
1.This item is Original Grade A CATL 230Ah LiFePO4 cell, the QR code is intact, Grade A+, Brand new.
2. After our test, the maximum discharge capacity can reach 240Ah.
3.The price come with Free Bus bars and Bolts. one battery will come with one set bus bar and bolt(e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts)If need more please contact us online.Thank you!
4. One battery with one insulation battery sheet
5. The bus bars size: 75*20*2mm(cooper plated with nickel) Screw size: M6

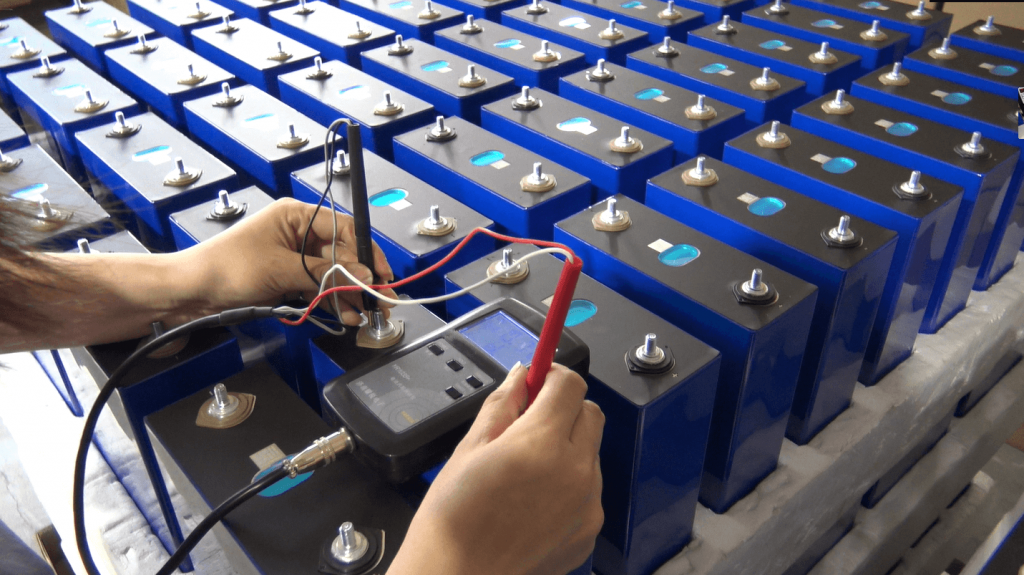

6.We tested every battery cell's Voltage ,Internal resistance before shipping out from China.
Important & Warmly Reminder
Batteries should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃.
Avoiding contact with corrosive substances and staying away from fire and heat source. The battery should be charged and discharged every 6 months.The SOC for storage is between 30% ~ 50%
1. When the battery is charged and discharged, the conditions for monitoring and protecting the battery voltage, current and temperature shall be ensured.
2. Please keep the battery away from the heat source, fire source and other corrosive environments such as water,heating, strong acid and strong alkali.
3. Do not short circuit the battery or install it with incorrect polarity at any time,otherwise it can cause serious damage to the battery and cause danger.
4. Do not mix batteries of different models or manufacturers.
5. Do not use external force to make the battery fall, impact or puncture. Do not disassemble the battery or change the external structure.
6. When the battery is not used for a long time, please keep the battery in the state of 30%-50% SOC, and avoid the environment of strong direct sunlight or high temperature and humidity.
7. When operating the battery, it is necessary to wear rubber gloves and other protective devices.
8. In case of leakage, smoke or damage of battery, please stop using immediately.
9. DIY battery pack must be getting the cells balanced before assembly.
Disse situationer giver ikke returnering eller refusion
*After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
*For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.
Tip: These products are batteries only, without protection board,you need to purchase a match one! You can check our shop and search BMS.
Kurér og logistik
In addition, because the battery is prohibited product, many courier and logistics are unable to send, the arrival will indeed be slower, so please wait patiently after place an order.
Ansøgning
Vores fabrik
1. Vi er en leverandør med 10 års erfaring. Alle vores varer kommer med høj kvalitet og god eftersalgsservice.
3. Stabil kvalitet - Kommer fra overlegen materialeleverandør og perfekt kvalitetskontrolsystem.
4. Konkurrencedygtig pris end nogen andre leverandører.
5. 7/24 service for dig, alle spørgsmål vil blive behandlet inden for 24 timer.
Pakning og forsendelse
A: Ja, vi bifalder prøveordre til test og kontrol af kvalitet. Blandede prøver er acceptable.Q2. Hvad med ledtiden?
A: Prøve har brug for 3-5 dage, masseproduktionstid har behov for 1-2 uger for ordremængde mere end
Q3. Har du nogen MOQ-grænse for litiumbatteri?
A: Lav MOQ, 1 st til prøvekontrol er tilgængelig
Q4. Hvordan sender du varerne, og hvor lang tid tager det at ankomme?
A: Vi sender normalt med DHL, UPS, FedEx eller TNT. Det tager normalt 3-5 dage at ankomme. Luftfarts- og søtransport også valgfri.
Q5. Hvordan foretages en ordre på lithium-ion-batteri?
A: Fortæl os først dine krav eller anvendelse.
For det andet citerer vi i henhold til dine krav eller vores forslag.
For det tredje bekræfter kunden prøverne og placerer depositum til formel ordre.
For det fjerde arrangerer vi produktionen.
Q6. Kan vi underskrive en tavshedspligt, hvis vi ønsker at opbygge et langsigtet forretningsforhold?
A: Sikker på, at vi respekterer kundernes krav, vil give dig mere fordel.
Q7: Tilbyder du garanti for produkterne?
A: Ja, vi tilbyder 12 måneders garanti på vores produkter.
Q8: Accepterer du OEM / ODM?
A: Ja, den tilpassede ordre er tilgængelig med vores glæde at tjene til dig.
A: usually it takes 5 hours with 20A standard charger.
